Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Outline: | 134×110 Mm | Brightness: | 250 Cd/m² (Typ.) |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Full color NL3224AC35-10 Nec Commercial Displays with 111.36×83.52 mm Active Area
NL3224AC35-10 Detail
| Panel Brand : | NEC |
| Panel Model : | NL3224AC35-10 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 111.36×83.52 mm |
| Outline : | 134×110 mm |
| Surface : | Glare (Haze 0%), Hard coating (2H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 85:1 (Typ.) |
| Display Colors : | Full color , CIE1931 50% |
| Response Time : | 16/44 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/25/25 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB , 24 pins |
| Input Voltage : | 12.0V (Typ.) |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
| Panel Size : | 5.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 72 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.116×0.348 mm (H×V) |
| Pixel Pitch : | 0.348×0.348 mm (H×V) |
| Weight : | 330/335g (Typ./Max.) |
| Surface : | Glare (Haze 0%), Hard coating (2H) |
| Active Area : | 111.36×83.52 mm (H×V) |
| Outline Dimension : | 134×110 mm (H×V) |
| Outline Depth : | 22.0±1.0 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |

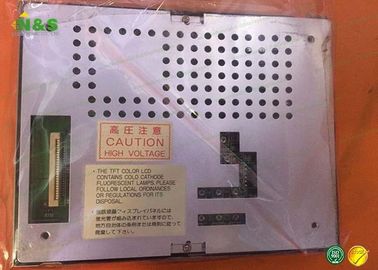

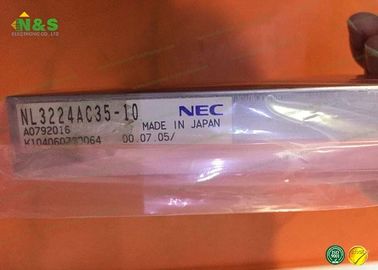

NL3224AC35-10 NEC LCD Panel Picture
