Product Details:
|
Resolution: | 240(RGB)×320 , QVGA | Active Area: | 53.64×71.52 Mm |
---|---|---|---|
Outline: | 63.5×85×7 Mm | Display Colors: | 262K (6-bit) |
High Light: | nec lcd touch screen,nec tft lcd |
Hard coating NEC 3.5 inch Medical Lcd Display NL2432HC22-42B with 53.64×71.52 mm
NL2432HC22-42B Specification
Panel Brand : | NEC |
Panel Model : | NL2432HC22-42B |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 3.5 inch |
Resolution : | 240(RGB)×320 , QVGA |
Display Mode : | TN, Normally White, Transflective |
Active Area : | 53.64×71.52 mm |
Outline : | 63.5×85×7 mm |
Surface : | Antiglare, Hard coating (3H) |
Brightness : | 200 cd/m² (Typ.) |
Contrast Ratio : | 130:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective) |
Display Colors : | 262K (6-bit) |
Response Time : | 7/23 (Typ.)(Tr/Td) |
Viewing Angle : | 30/30/30/35 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 6S1P WLED Without Driver |
Signal Interface : | CMOS (1 ch, 6-bit) + SPI , 45 pins |
Input Voltage : | 3.0V (Typ.) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Our Advantages
After-sales-service With 12 Months Warranty for our LCD panels.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
PW090XUA | E Ink | 9.0" | 640×220 |
PW090XU8 | E Ink | 9.0" | 640×220 |
PW090XU7 | E Ink | 9.0" | 640×220 |
PW090XU6 | E Ink | 9.0" | 640×220 |
PW090XSA | E Ink | 9.0" | 640×220 |
PW090XS8 | E Ink | 9.0" | 640×220 |
PW084XU2 | E Ink | 8.4" | 480×234 |
PW084XS6 | E Ink | 8.4" | 480×234 |
PW084XS3 | E Ink | 8.4" | 480×234 |
PW080XU8 | E Ink | 8.0" | 480×220 |
PW080XU6 | E Ink | 8.0" | 480×220 |
PW080XU5 | E Ink | 8.0" | 480×220 |
Panel Size : | 3.5 inch |
Dot Resolution : | 240(RGB)×320 (QVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 113 PPI |
Aspect Ratio : | 3:4 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0745×0.2235 mm (H×V) |
Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
Weight : | 43.0/45.0g (Typ./Max.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 53.64×71.52 mm (H×V) |
Bezel Area : | 57.64×76.52 mm (H×V) |
Outline Dimension : | 63.5×85 mm (H×V) |
Outline Depth : | 4.2/7.0 (Typ./Max.) mm |
Landscape or Portrait : | Portrait type |
Touch Panel : | Embeded (4-wire Resistive) |

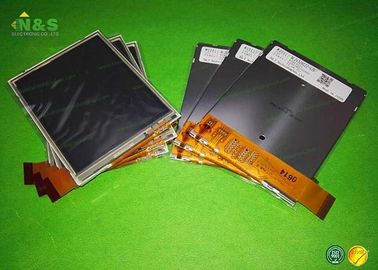

NL2432HC22-42B NEC LCD Panel Picture
