Product Details:
|
| Brightness: | 650 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) |
|---|---|---|---|
| Display Colors: | Grayscale (8-bit) | Response Time: | 17/18 (Typ.)(Tr/Td) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| High Light: | nec tft lcd,nec lcd screen |
||
NL204153BM21-01A 21.3 inch NEC LCD Panel 433.152×324.864 mm Active Area
NL204153BM21-01A Specification
| Panel Brand : | NEC |
| Panel Model : | NL204153BM21-01A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.3 inch |
| Resolution : | 2048(LCR)×1536 , QXGA |
| Display Mode : | SA-SFT, Normally Black, Transmissive |
| Active Area : | 433.152×324.864 mm |
| Outline : | 457×350×25.3 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 650 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | Grayscale (8-bit) |
| Response Time : | 17/18 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | LVDS (4 ch, 8-bit) , 80 pins |
| Input Voltage : | 12.0V (Typ.) |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
| Panel Size : | 21.3 inch |
| Dot Resolution : | 2048(LCR)×1536 (QXGA) |
| Pixel Configuration : | LCR Vertical Stripe |
| Pixel Density : | 120 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0705×0.2115 mm (H×V) |
| Pixel Pitch : | 0.2115×0.2115 mm (H×V) |
| Weight : | 3.80/4.00Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 433.152×324.864 mm (H×V) |
| Bezel Area : | 438.2×330.0 mm (H×V) |
| Outline Dimension : | 457×350 mm (H×V) |
| Outline Depth : | 22.0/25.3 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

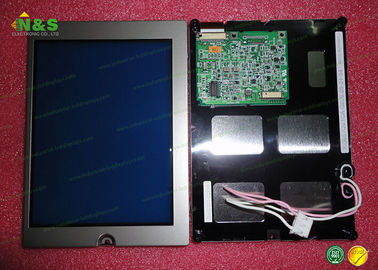

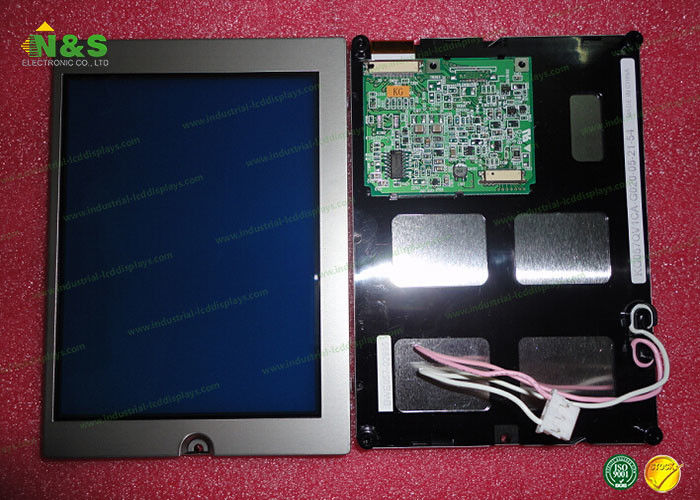

NL204153BM21-01A NEC LCD Panel Picture
