Product Details:
|
| Pixel Density: | 120 PPI | Aspect Ratio: | 4:3 (H:V) |
|---|---|---|---|
| Dot Pitch: | 0.0705×0.2115 Mm (H×V) | Pixel Pitch: | 0.2115×0.2115 Mm (H×V) |
| Weight: | 2.70/2.90Kgs (Typ./Max.) | Active Area: | 433.152×324.864 Mm (H×V) |
| Bezel Area: | 438.2×330.0 Mm (H×V) | Outline Depth: | 34.0/37.0 (Typ./Max.) Mm |
| High Light: | nec tft lcd,nec lcd screen |
||
Normally Black NL204153AC21-09 21.3 inch NEC LCD Panel with 433.152×324.864 mm Active Area
NL204153AC21-09 Information
| Panel Brand : | NEC |
| Panel Model : | NL204153AC21-09 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.3 inch |
| Resolution : | 2048(RGB)×1536 , QXGA |
| Display Mode : | UA-SFT, Normally Black, Transmissive |
| Active Area : | 433.152×324.864 mm |
| Outline : | 457×350×37 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 800 cd/m² (Typ.) |
| Contrast Ratio : | 750:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 14/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 16 pcs CCFL Embedded (Inverter) |
| Signal Interface : | LVDS (4 ch, 8-bit) , 80 pins |
| Input Voltage : | 12.0V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 21.3 inch |
| Dot Resolution : | 2048(RGB)×1536 (QXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 120 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0705×0.2115 mm (H×V) |
| Pixel Pitch : | 0.2115×0.2115 mm (H×V) |
| Weight : | 2.70/2.90Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 433.152×324.864 mm (H×V) |
| Bezel Area : | 438.2×330.0 mm (H×V) |
| Outline Dimension : | 457×350 mm (H×V) |
| Outline Depth : | 34.0/37.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.

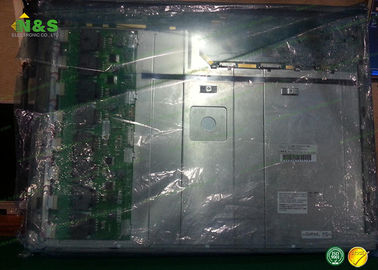

NL204153AC21-09 NEC LCD Panel Picture
