Product Details:
|
| Dot Pitch: | 0.090×0.270 Mm (H×V) | Pixel Pitch: | 0.270×0.270 Mm (H×V) |
|---|---|---|---|
| Weight: | 3.75/4.00Kgs (Typ./Max.) | Active Area: | 432×324 Mm (H×V) |
| Bezel Area: | 438.2×330.0 Mm (H×V) | Outline Dimension: | 457×350 Mm (H×V) |
| High Light: | nec lcd touch screen,nec lcd screen |
||
NL160120BC27-14 NEC 21.3 inch LCM with 432×324 mm Active Area
NL160120BC27-14 Specification
| Panel Brand : | NEC |
| Panel Model : | NL160120BC27-14 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.3 inch |
| Resolution : | 1600(RGB)×1200 , UXGA |
| Display Mode : | SA-SFT, Normally Black, Transmissive |
| Active Area : | 432×324 mm |
| Outline : | 457×350 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 550:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 11/9 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 40 pins |
| Input Voltage : | 12.0V (Typ.) |
| Panel Size : | 21.3 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.75/4.00Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 432×324 mm (H×V) |
| Bezel Area : | 438.2×330.0 mm (H×V) |
| Outline Dimension : | 457×350 mm (H×V) |
| Outline Depth : | 25.0±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| PW090XUA | E Ink | 9.0" | 640×220 |
| PW090XU8 | E Ink | 9.0" | 640×220 |
| PW090XU7 | E Ink | 9.0" | 640×220 |
| PW090XU6 | E Ink | 9.0" | 640×220 |
| PW090XSA | E Ink | 9.0" | 640×220 |
| PW090XS8 | E Ink | 9.0" | 640×220 |
| PW084XU2 | E Ink | 8.4" | 480×234 |
| PW084XS6 | E Ink | 8.4" | 480×234 |
| PW084XS3 | E Ink | 8.4" | 480×234 |
| PW080XU8 | E Ink | 8.0" | 480×220 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

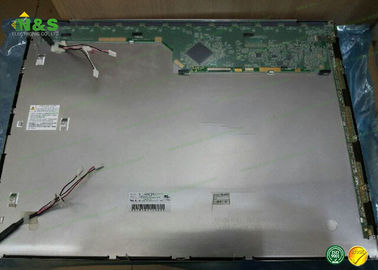

NL160120BC27-14 Picture
