Product Details:
|
| Panel Size :: | 18.5 Inch | Resolution :: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Active Area :: | 409.8×230.4 Mm | Outline :: | 430.37×254.6×11 Mm |
| Surface :: | Antiglare (Haze 25%), Hard Coating (3H) | Brightness :: | 250 Cd/m² (Typ.) |
| High Light: | tft lcd display,innolux lcd screen |
||

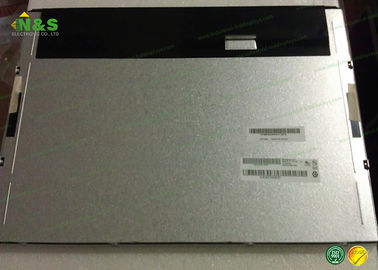

M185B3-LA1 Innolux 18.5 inch with 409.8×230.4 mm Active Area for Desktop Monitor
M185B3-LA1 Information
| Panel Size : | 18.5 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.100×0.300 mm (H×V) |
| Pixel Pitch : | 0.300×0.300 mm (H×V) |
| Weight : | 1.53/1.58Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 409.8×230.4 mm (H×V) |
| Bezel Area : | 413.4×234.0 mm (H×V) |
| Outline Dimension : | 430.37×254.6 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.42 (Max.)(9 points) |
| Sunlight Readable : | N |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : | 9.9W (Typ.) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
| F055A15-6T1 | Innolux | 5.5" | 720×1280 |
| F050A19-601 | Innolux | 5.5" | 720×1280 |
| HE101IA-01R | Innolux | 10.1" | 1280×800 |
| F055A13-6T1 | Innolux | 5.5" | 720×1280 |
| F050A13-604 | Innolux | 5.0" | 720×1280 |
| V650DK6-QS1 | Innolux | 65" | 3840×2160 |
| M238HCJ-P03 | Innolux | 23.8" | 1920×1080 |
| V400HJ6-PE1 Rev.C2 | Innolux | 40" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
