Product Details:
|
| Product Number: | NL6448AC20-06 | Brand: | NEC LCD Panel |
|---|---|---|---|
| Resolution: | 640×480 | Size: | 6.5" |
| Brightness: | 200 | C/R: | 150:1 |
| High Light: | nec lcd touch screen,nec lcd screen |
||

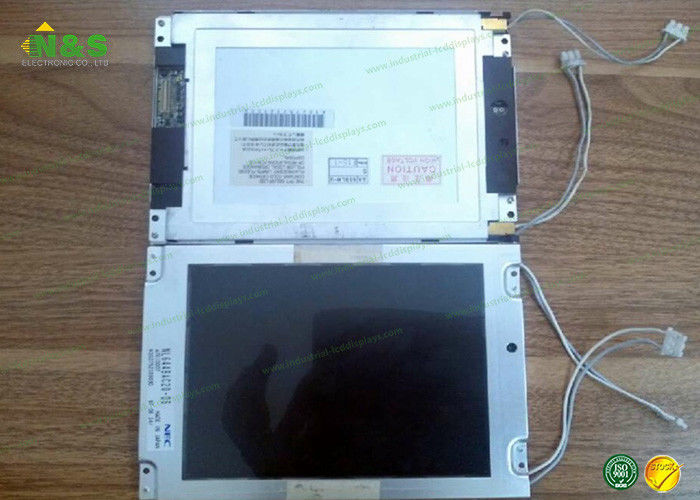

NL6448AC20-06 6.5 inch LCD Panel Display Screen Injection Molding Machine
Panel Brand : NEC
Panel Model : NL6448AC20-06
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 6.5 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 150:1 (Typ.)
Display Colors : 4096/262K (4-bit / 6-bit) , CIE1931 45%
Response Time : 40 (Typ.)(Tr)
Viewing Angle : 50/50/35/45 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL
Signal Interface : CMOS (1 ch, 4/6-bit) , 31 pins
Input Voltage : 5.0V (Typ.)
| Panel Brand : |  |
|---|---|
| Panel Model : | NL6448AC20-06 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : |
|
| Operating Temperature : | 0 ~ 60 °C |
| Storage Temperature : | -20 ~ 60 °C |
| RoHS : | |
| Specific Feature : |
|
| Remarks : | With Retardation Film, Compatible to the mounting hole position of NL6448AC20-02 except for inverter |
| Panel Size : | 6.5 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 122 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.069×0.207 mm (H×V) |
| Pixel Pitch : | 0.207×0.207 mm (H×V) |
| Weight : | 254g (Typ.) |
| Active Area : | 132.48×99.36 mm (H×V) |
| Bezel Area : | 140.5×106.6 mm (H×V) |
| Outline Dimension : | 178.8×126.8 mm (H×V) |
| Outline Depth : | 11.0/11.5 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
