Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Active Area: | 359.04×287.232 Mm | Outline: | 424×337 Mm |
| Contrast Ratio: | 300:1 (Typ.) | Brightness: | 200 Cd/m² (Typ.) |
| Display Colors: | Full Color , CIE1931 60% | Response Time: | 40/35 (Typ.)(Tr/Td) |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Normally Black NL128102AC28-01E NEC LCD Panel 18.1 inch LCM 1280×1024 200 300:1 Full color CCFL Analog
NL128102AC28-01E Detail
| Panel Brand : | NEC |
| Panel Model : | NL128102AC28-01E |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 18.1 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | SFT, Normally Black, Transmissive |
| Active Area : | 359.04×287.232 mm |
| Outline : | 424×337 mm |
| Surface : | Hard coating (3H), Antireflection |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | Full color , CIE1931 60% |
| Response Time : | 40/35 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 8 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB , 41 pins |
| Input Voltage : | 12.0V (Typ.) |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| Panel Size : | 18.1 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0935×0.2805 mm (H×V) |
| Pixel Pitch : | 0.2805×0.2805 mm (H×V) |
| Weight : | 2.00/2.10Kgs (Typ./Max.) |
| Surface : | Hard coating (3H), Antireflection |
| Active Area : | 359.04×287.232 mm (H×V) |
| Bezel Area : | 364.0×292.2 mm (H×V) |
| Outline Dimension : | 424×337 mm (H×V) |
| Outline Depth : | 38.5/40.0 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

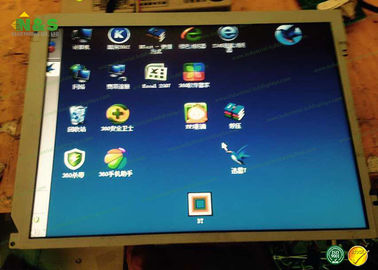

NL128102AC28-01E NEC LCD Panel Picture
