Product Details:
|
| Panel Size :: | 17.0 Inch | Resolution :: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Active Area :: | 337.92×270.336 Mm | Brightness :: | 250 Cd/m² (Typ.) |
| Contrast Ratio :: | 1000:1 (Typ.) | Viewing Angle :: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | tft lcd display,innolux lcd screen |
||

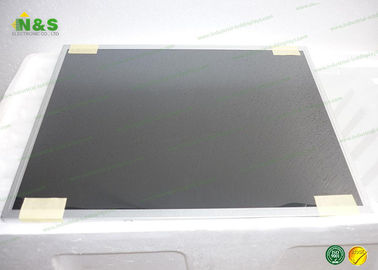

M170E8-L01 Innolux 17.0 inch 358.5×296.5×13.5 mm Outline TN, Normally White
M170E8-L01 Information
| Panel Size : | 17.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 1.44/1.49Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 337.92×270.336 mm (H×V) |
| Bezel Area : | 341.9×274.4 mm (H×V) |
| Outline Dimension : | 358.5×296.5 mm (H×V) |
| Outline Depth : | 13.0/13.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Display Mode : |
TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
| Amount per Box : | 10 pcs |
| Box Size : |
440×280×375 mm (L×W×H) |
| Box Gross Weight : |
20.2 Kgs |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
| F055A15-6T1 | Innolux | 5.5" | 720×1280 |
| F050A19-601 | Innolux | 5.5" | 720×1280 |
| HE101IA-01R | Innolux | 10.1" | 1280×800 |
| F055A13-6T1 | Innolux | 5.5" | 720×1280 |
| F050A13-604 | Innolux | 5.0" | 720×1280 |
| V650DK6-QS1 | Innolux | 65" | 3840×2160 |
| M238HCJ-P03 | Innolux | 23.8" | 1920×1080 |
