Product Details:
|
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) |
|---|---|---|---|
| Response Time: | 3/15 (Typ.)(Tr/Td) | Resolution: | 1024(RGB)×768 , XGA |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Antiglare NL10276BC30-34R NEC LCD Panel 15.0 inch LCM 1024×768 400 600:1 262K WLED LVDS
NL10276BC30-34R Information
| Panel Brand : | NEC |
| Panel Model : | NL10276BC30-34R |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 326.5×253.5×12 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 strings WLED Optional |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Company Strength in LCD Screen Sourcing:
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 0.97/1.05Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 11.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

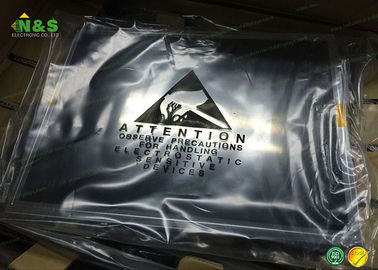

NL10276BC30-34R NEC LCD Panel Picture
