Product Details:
|
| Panel Size :: | 17.0 Inch | Resolution :: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Active Area :: | 337.92×270.336 Mm | Outline :: | 358.5×296.5×17.5 Mm |
| Display Colors :: | 16.2M (6-bit + FRC) | Response Time :: | 2/6 (Typ.)(Tr/Td) |
| High Light: | tft lcd display,lcd display panel |
||

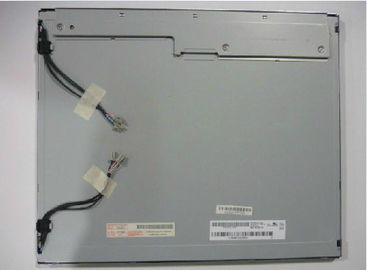

M170E5-L0A Innolux 17.0 inch with 358.5×296.5×17.5 mm for Desktop Monitor
M170E5-L0A Information
| Panel Size : | 17.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 2.36/2.43Kgs (Typ./Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 337.92×270.336 mm (H×V) |
| Bezel Area : | 341.9×274.4 mm (H×V) |
| Outline Dimension : | 358.5×296.5 mm (H×V) |
| Outline Depth : | 17.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (8-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
| Amount per Box : | 5 pcs |
| Box Size : | 537×316×462 mm (L×W×H) |
| Box Gross Weight : | 12 Kgs |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M238HCJ-P02 | Innolux | 23.8" | 1920×1080 |
| ME270NA-01A | Innolux | 27.0" | 1920×1080 |
| N156BGE-PB1 | Innolux | 15.6" | 1366×768 |
| PP050IC-01F | Innolux | 5.0" | 720×1280 |
| P060DDZ-ZZ1 | Innolux | 6.0" | 800×1280 |
| ME236NA-01A | Innolux | 23.6" | 1920×1080 |
| F055A07-601 | Innolux | 5.5" | 720×1280 |
| F050A07-6T2 | Innolux | 5.0" | 720×1280 |
| V650HP1-PS6 Rev.C6 | Innolux | 65" | 1920×1080 |
| P101LCA-3P1 | Innolux | 10.1" | 1920×1200 |
| V650HP2-PS5 | Innolux | 65" | 1920×1080 |
| N156HGE-DB1 | Innolux | 15.6" | 1920×1080 |
| V500DJ4-QS1 | Innolux | 50" | 3840×2160 |
| V500DJ2-QS5 | Innolux | 50" | 3840×2160 |
