Product Details:
|
| Pixel Density: | 85 PPI | Aspect Ratio: | 4:3 (H:V) |
|---|---|---|---|
| Dot Pitch: | 0.099×0.297 Mm (H×V) | Pixel Pitch: | 0.297×0.297 Mm (H×V) |
| High Light: | nec tft lcd,nec lcd screen |
||

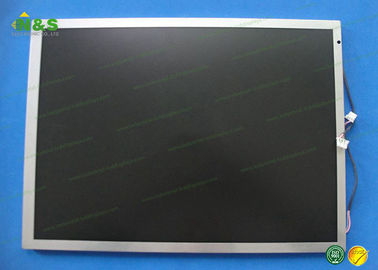

NL10276BC30-33 NEC LCD Panel 15.0" LCM 1024×768 350 500:1 16.7M CCFL LVDS
| Panel Brand : | NEC |
| Panel Model : | NL10276BC30-33 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 326.5×253.5×12 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 50% |
| Response Time : | 4/14 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 970/1050g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 11.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
NL10276BC30-33 NEC LCD Panel 15.0" LCM 1024×768 350 500:1 16.7M CCFL LVDS
