Product Details:
|
| Panel Brand: | Innolux | Panel Model: | ZJ080NA-08A |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd display,lcd display panel |
||
ZJ080NA-08A Innolux LCD Panel 8.0 inch with 176.64×99.36 mm
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
ZJ080NA-08A Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | ZJ080NA-08A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.0 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 176.64×99.36 mm |
| Outline : | 192.8×116.9×6.7 mm |
| Surface : | |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 70% |
| Response Time : | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
| F055A15-6T1 | Innolux | 5.5" | 720×1280 |
| F050A19-601 | Innolux | 5.5" | 720×1280 |
| Panel Size : | 8.0 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 148 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0575×0.1656 mm (H×V) |
| Pixel Pitch : | 0.1725×0.1656 mm (H×V) |
| Weight : | 0.23Kgs (Typ.) |
| Active Area : | 176.64×99.36 mm (H×V) |
| Bezel Area : | 179.84×103.16 mm (H×V) |
| Outline Dimension : | 192.8×116.9 mm (H×V) |
| Outline Depth : | 6.4±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

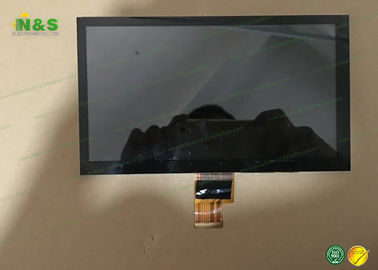

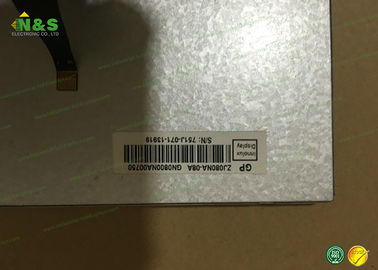

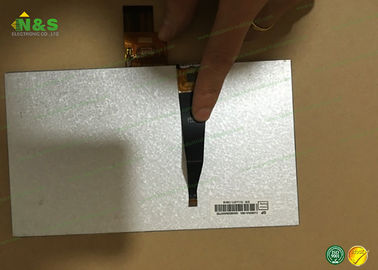

ZJ080NA-08A Picture
