Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Active Area: | 304.128×228.096 Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | nec lcd touch screen,nec lcd screen |
||
NL10276BC30-18 Antiglare NEC LCD Panel 15.0 inch with 304.128×228.096 mm
NL10276BC30-18 Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276BC30-18 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 326.5×253.5×17 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 40% |
| Response Time : | 4/14 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Optional |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.30/1.43Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 17.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (6-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| PW100XU2 | E Ink | 10.0" | 640×468 |
| PW090XUD | E Ink | 9.0" | 640×220 |
| PW090XUC | E Ink | 9.0" | 640×220 |
| PW090XUB | E Ink | 9.0" | 640×220 |
| PW090XUA | E Ink | 9.0" | 640×220 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

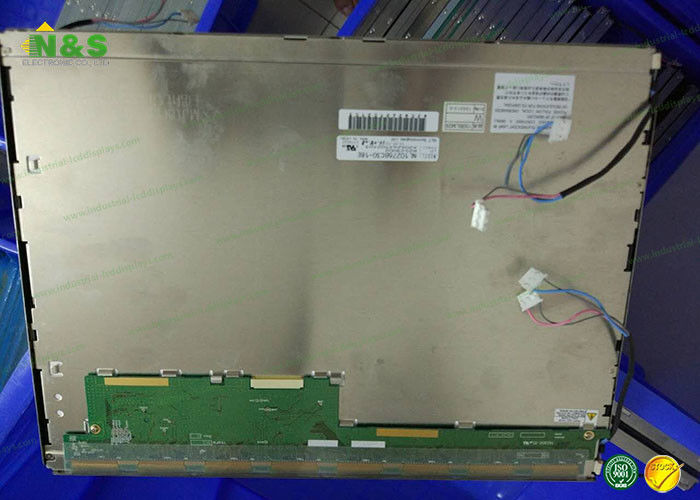

NL10276BC30-18 NEC LCD Panel Picture
