Product Details:
|
| Panel Brand: | NEC | Panel Model: | NL8060BC21-11C |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NEC NL8060BC21-11C NEC LCD Panel 8.4 inch with 170.4×127.8 mm Active Area
NL8060BC21-11C Specification
| Panel Brand : | NEC |
| Panel Model : | NL8060BC21-11C |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 200×152×8.7 mm |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Brightness : | 800 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time : | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 260/280g (Typ./Max.) |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 174.0×131.4 mm (H×V) |
| Outline Dimension : | 200×152 mm (H×V) |
| Outline Depth : | 8.2±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Ф2.8) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

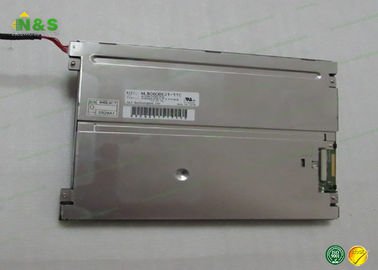

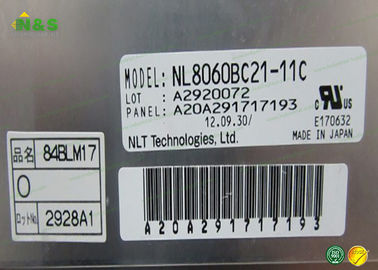

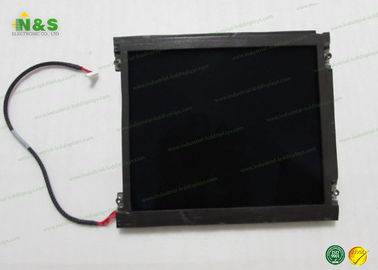

NL8060BC21-11C Picture
