Product Details:
|
| Panel Brand: | NEC | Panel Model: | NL6448BC20-35D |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | nec tft lcd,nec lcd screen |
||
6.5 inch NL6448BC20-35D NEC LCD Panel 132.48×99.36 mm Active Area
NL6448BC20-35D Specification
| Panel Brand : | NEC |
| Panel Model : | NL6448BC20-35D |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.5 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 132.48×99.36 mm |
| Outline : | 153×118 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3 strings WLED Without Driver |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
| Panel Size : | 6.5 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 122 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.069×0.207 mm (H×V) |
| Pixel Pitch : | 0.207×0.207 mm (H×V) |
| Weight : | 150/160g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 132.48×99.36 mm (H×V) |
| Bezel Area : | 135.5×102.4 mm (H×V) |
| Outline Dimension : | 153×118 mm (H×V) |
| Outline Depth : | 8.2±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| NL6448HL11-02 | NLT | 3.5" | 640×480 |
| NL12876AC18-03KD | NLT | 10.6" | 1280×768 |
| NL12876AC18-03BD | NLT | 10.6" | 1280×768 |
| NL10276BC13-01BD | NLT | 6.5" | 1024×768 |
| NL10276BC28-27E | NLT | 14.1" | 1024×768 |
| NL10276BC28-24C | NLT | 14.1" | 1024×768 |
| NL2432HC22-30B | NLT | 3.5" | 240×320 |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

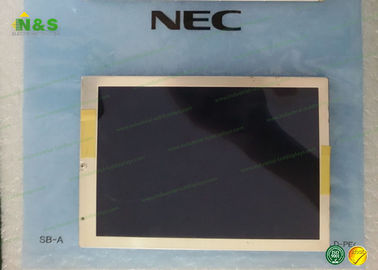

NL6448BC20-35D Picture
