Product Details:
|
| Panel Brand: | Innolux | Panel Model: | N080ICE-GB1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 800(RGB)×1280 , WXGA | Display Mode: | AAS, Normally Black, Transmissive |
| High Light: | lcd display panel,innolux lcd screen |
||
N080ICE-GB1 Innolux LCD Panel 8.0 inch LCM 800×1280 350 800:1 16.7M WLED MIPI
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
N080ICE-GB1 Specification
| Panel Brand : | INNOLUX |
| Panel Model : | N080ICE-GB1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.0 inch |
| Resolution : | 800(RGB)×1280 , WXGA |
| Display Mode : | AAS, Normally Black, Transmissive |
| Active Area : | 107.64×172.224 mm |
| Outline : | 120.65×187.64×5.1 mm |
| Surface : | Hard coating (3H), Antireflection |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 60% |
| Response Time : | 25 (Typ.)(Tr+Tf) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | MIPI (4 data lanes) , 31 pins |
| Input Voltage : | 1.8/3.6V (Typ.)(VDD/VCI) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V850DK1-QS1 Rev.C8 | Innolux | 85" | 3840×2160 |
| V850DK1-QS1 Rev.C2 | Innolux | 85" | 3840×2160 |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| Panel Size : | 8.0 inch |
| Dot Resolution : | 800(RGB)×1280 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 188 PPI |
| Aspect Ratio : | 10:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.04485×0.13455 mm (H×V) |
| Pixel Pitch : | 0.13455×0.13455 mm (H×V) |
| Weight : | 99.0g (Max.) |
| Surface : | Hard coating (3H), Antireflection |
| Active Area : | 107.64×172.224 mm (H×V) |
| Outline Dimension : | 120.65×187.64 mm (H×V) |
| Outline Depth : | 2.9/5.1 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

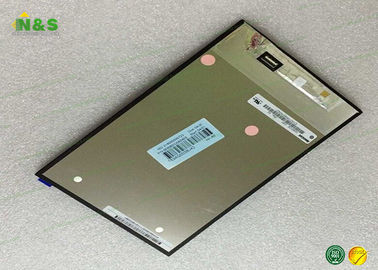

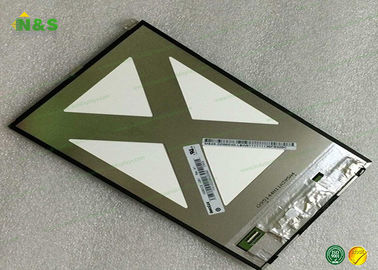

N080ICE-GB1 Picture
