Product Details:
|
| Panel Brand: | Innolux | Panel Model: | N070ICG-LD1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
| Resolution: | 1280(RGB)×800 , WXGA | Display Mode: | IPS, Normally Black, Transmissive |
| High Light: | lcd display panel,innolux lcd screen |
||
7.0 inch N070ICG-LD1 Innolux LCD Panel Normally Black for Pad,Tablet panel
N070ICG-LD1 Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | N070ICG-LD1 1 Compatible model |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 149.76×93.6 mm |
| Outline : | 161×107×4.5 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 9S2P WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 8-bit) , 39 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Advantages
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
| Panel Size : | 7.0 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 217 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.039×0.117 mm (H×V) |
| Pixel Pitch : | 0.117×0.117 mm (H×V) |
| Weight : | 85/95g (Typ./Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 149.76×93.6 mm (H×V) |
| Bezel Area : | 151.76×95.6 mm (H×V) |
| Outline Dimension : | 161×107 mm (H×V) |
| Outline Depth : | 2.5/4.5 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V850DK1-QS1 Rev.C2 | Innolux | 85" | 3840×2160 |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

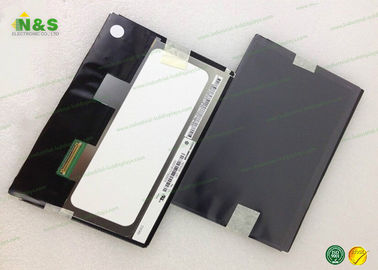

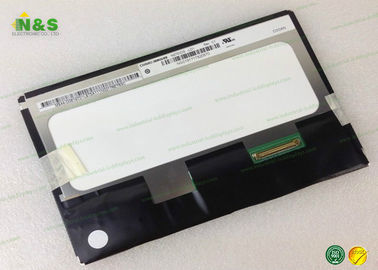

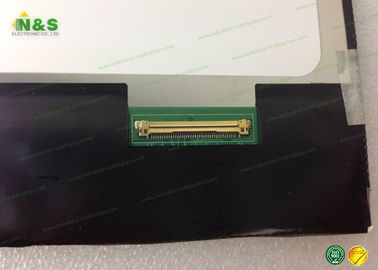

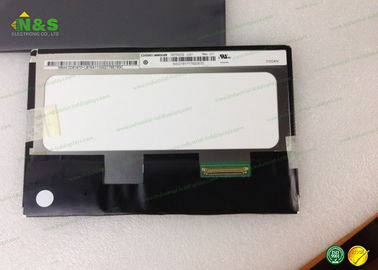

N070ICG-LD1 Picture
