Product Details:
|
| Panel Brand: | Innolux | Panel Model: | M238DCJ-E50 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 23.8 Inch |
| Resolution: | 3840(RGB)×2160 , UHD | Display Mode: | MVA, Normally Black, Transmissive |
| High Light: | tft lcd display,lcd display panel |
||
M238DCJ-E50 23.8 inch Innolux LCD Panel Normally Black for Desktop Monitor
M238DCJ-E50 Specification
| Panel Brand : | INNOLUX |
| Panel Model : | M238DCJ-E50 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 23.8 inch |
| Resolution : | 3840(RGB)×2160 , UHD |
| Display Mode : | MVA, Normally Black, Transmissive |
| Active Area : | 527.04×296.46 mm |
| Outline : | 545×323.4×13.2 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | |
| Contrast Ratio : | |
| Display Colors : | 1.07B (8-bit + Hi-FRC) , CIE1931 97% |
| Response Time : | 9.5 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | eDP (4 Lanes) , 30 pins |
| Input Voltage : | 10.0V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V850DK1-QS1 Rev.C2 | Innolux | 85" | 3840×2160 |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
| PG055IC-07F | Innolux | 5.5" | 1080×1920 |
| PB050IC-01D | Innolux | 5.0" | 1080×1920 |
| PG050IA-02A | Innolux | 5.0" | 540×960 |
| V400DK1-QE2 | Innolux | 40" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
| Panel Size : | 23.8 inch |
| Dot Resolution : | 3840(RGB)×2160 (UHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 185 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.04575×0.13725 mm (H×V) |
| Pixel Pitch : | 0.13725×0.13725 mm (H×V) |
| Weight : | 1855±95g |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 527.04×296.46 mm (H×V) |
| Bezel Area : | 530.2×299.6 mm (H×V) |
| Outline Dimension : | 545×323.4 mm (H×V) |
| Outline Depth : | 8.1/13.2 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

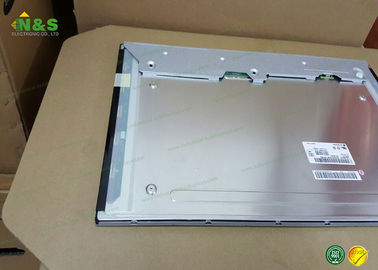

M238DCJ-E50 Picture
