Product Details:
|
| Panel Brand: | Innolux | Panel Model: | M236HNJ-L55 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 23.6 Inch |
| Resolution: | 1920(RGB)×1080 , FHD | Display Mode: | MVA, Normally Black, Transmissive |
| High Light: | tft lcd display,lcd display panel |
||
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
M236HNJ-L55 Product Information
| Panel Brand : | INNOLUX |
| Panel Model : | M236HNJ-L55 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 23.6 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | MVA, Normally Black, Transmissive |
| Active Area : | 521.28×293.22 mm |
| Outline : | 544.8×320.5×11.5 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 3000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 95% |
| Response Time : | 16/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
| Panel Size : | 23.6 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 93 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0905×0.2715 mm (H×V) |
| Pixel Pitch : | 0.2715×0.2715 mm (H×V) |
| Weight : | 2.19/2.30Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 521.28×293.22 mm (H×V) |
| Bezel Area : | 525.22×297.22 mm (H×V) |
| Outline Dimension : | 544.8×320.5 mm (H×V) |
| Outline Depth : | 11.5 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

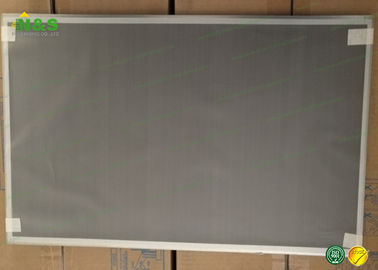

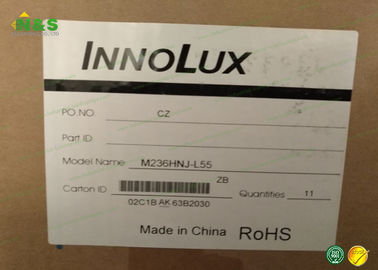

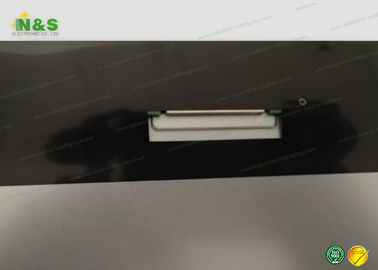

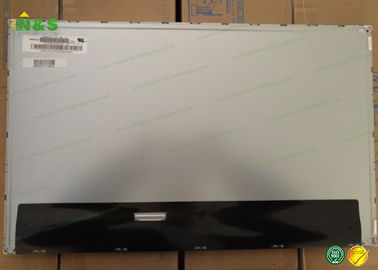

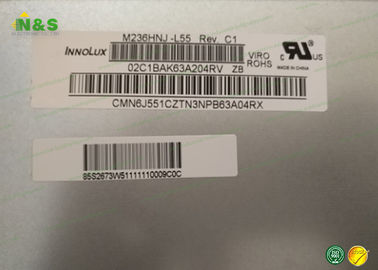

M236HNJ-L55 Picture
