Product Details:
|
| Panel Size :: | 15.0 Inch | Resolution :: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Active Area :: | 304.1×228.1 Mm | Outline :: | 331.6×254.76 Mm |
| Brightness :: | 500 Cd/m² (Typ.) | Contrast Ratio :: | 300:1 (Typ.) |
| High Light: | tft lcd display,lcd display panel |
||

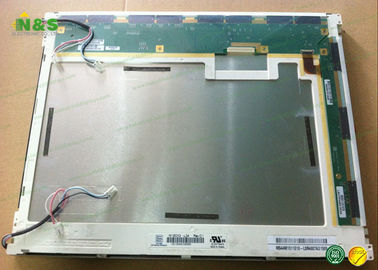

15.0 inch M150X3-L04 Innolux LCM 1024×768 500 300:1 16.2M Of Desktop Monitor
M150X3-L04 Information
What’s our advantage compared with other suppliers?
1. Before shipment, we will test every LCD Screen and ensure the quality.
2. we provide high quality lcd panels for customers all over the world.
3. We have DBS, ISO9001 Certifications for our Panels.
4. Excellent service on before-sale, on-sale and after-sale.
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.35Kgs (Max.) |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 308.2×232.1 mm (H×V) |
| Outline Dimension : | 331.6×254.76 mm (H×V) |
| Outline Depth : | 13.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Response Time : | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Sunlight Readable : | N |
| Amount per Box : | 5 pcs |
| Box Size : | 353×268×462 mm (L×W×H) |
| Box Gross Weight : | 8.5 Kgs |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
| F055A15-6T1 | Innolux | 5.5" | 720×1280 |
| F050A19-601 | Innolux | 5.5" | 720×1280 |
| HE101IA-01R | Innolux | 10.1" | 1280×800 |
| F055A13-6T1 | Innolux | 5.5" | 720×1280 |
| F050A13-604 | Innolux | 5.0" | 720×1280 |
| V650DK6-QS1 | Innolux | 65" | 3840×2160 |
| M238HCJ-P03 | Innolux | 23.8" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
