Product Details:
|
| Active Area: | 210.432×157.824 Mm | Response Time: | 3/15 (Typ.)(Tr/Td) |
|---|---|---|---|
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | nec lcd touch screen,nec tft lcd |
||
10.4 inch NL10276BC20-18B NEC LCD Panel with 210.432×157.824 mm Active Area
NL10276BC20-18B Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276BC20-18B |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 210.432×157.824 mm |
| Outline : | 228×178.5 mm |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time : | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 strings WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 500g (Typ.) |
| Active Area : | 210.432×157.824 mm (H×V) |
| Outline Dimension : | 228×178.5 mm (H×V) |
| Outline Depth : | 10.2 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive, Film / Glass) |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| PW090XUA | E Ink | 9.0" | 640×220 |
| PW090XU8 | E Ink | 9.0" | 640×220 |
| PW090XU7 | E Ink | 9.0" | 640×220 |
| PW090XU6 | E Ink | 9.0" | 640×220 |
| PW090XSA | E Ink | 9.0" | 640×220 |
| PW090XS8 | E Ink | 9.0" | 640×220 |
| PW084XU2 | E Ink | 8.4" | 480×234 |
| PW084XS6 | E Ink | 8.4" | 480×234 |
| PW084XS3 | E Ink | 8.4" | 480×234 |
| PW080XU8 | E Ink | 8.0" | 480×220 |
| PW080XU6 | E Ink | 8.0" | 480×220 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

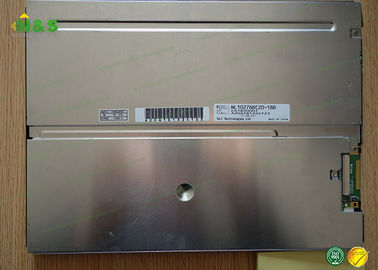

NL10276BC20-18B NEC LCD Panel Picture
