Product Details:
|
| Active Area: | 210.432×157.824 Mm | Outline: | 228×178.5 Mm |
|---|---|---|---|
| Surface: | Clear, Hard Coating (3H) | Contrast Ratio: | 150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| High Light: | nec lcd touch screen,nec tft lcd |
||
10.4 inch NL10276BC20-10 NEC LCD Panel Normally White with 210.432×157.824 mm Active Area
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
NL10276BC20-10 Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276BC20-10 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 210.432×157.824 mm |
| Outline : | 228×178.5 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 175 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time : | 8/22 (Typ.)(Tr/Td) |
| Viewing Angle : | 25/20/25/20 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ. |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 380/400g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 210.432×157.824 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 228×178.5 mm (H×V) |
| Outline Depth : | 8.7±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

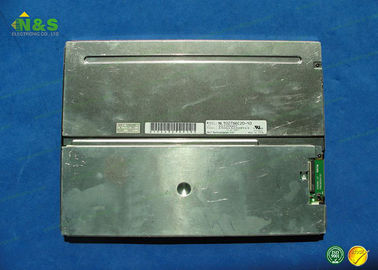

NL10276BC20-10 NEC LCD Panel Picture
