Product Details:
|
| Dot Resolution: | 1024(RGB)×768 (XGA) | Pixel Configuration: | RGB Vertical Stripe |
|---|---|---|---|
| Pixel Pitch: | 0.2055×0.2055 Mm (H×V) | Dot Pitch: | 0.0685×0.2055 Mm (H×V) |
| Weight: | 440/480g (Typ./Max.) | Outline Depth: | 10.0±0.5 Mm |
| Holes & Brackets: | Side Mounting Holes (4 Pcs) | Landscape Or Portrait: | Landscape Type |
| High Light: | nec lcd touch screen,nec lcd screen |
||
NL10276BC20-08 NEC LCD Panel 10.4 inch with 210.432×157.824 mm Active Area
NL10276BC20-08 Information
| Panel Brand : | NEC |
| Panel Model : | NL10276BC20-08 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | SA-SFT, Normally Black, Transmissive |
| Active Area : | 210.432×157.824 mm |
| Outline : | 227×174.5 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 13/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 440/480g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 210.432×157.824 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 227×174.5 mm (H×V) |
| Outline Depth : | 10.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| PW090XUA | E Ink | 9.0" | 640×220 |
| PW090XU8 | E Ink | 9.0" | 640×220 |
| PW090XU7 | E Ink | 9.0" | 640×220 |
| PW090XU6 | E Ink | 9.0" | 640×220 |
| PW090XSA | E Ink | 9.0" | 640×220 |
| PW090XS8 | E Ink | 9.0" | 640×220 |
| PW084XU2 | E Ink | 8.4" | 480×234 |
| PW084XS6 | E Ink | 8.4" | 480×234 |
| PW084XS3 | E Ink | 8.4" | 480×234 |
| PW080XU8 | E Ink | 8.0" | 480×220 |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

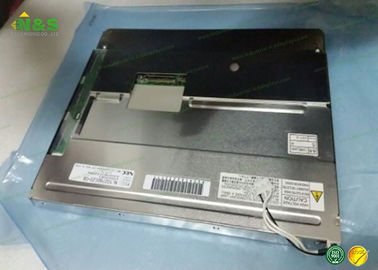

NL10276BC20-08 NEC LCD Panel Picture
