Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Active Area: | 243×185.1×11.5 Mm |
|---|---|---|---|
| Outline: | 210.432×157.824 Mm | Brightness: | 300 Cd/m² (Typ.) |
| Display Colors: | 262K (6-bit) , CIE1931 40% | Viewing Angle: | 60/60/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | nec lcd touch screen,nec lcd screen |
||
NL10276BC20-04C NEC LCD Panel 10.4 inch Normally White with 210.432×157.824 mm
NL10276BC20-04C Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276BC20-04C |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 210.432×157.824 mm |
| Outline : | 243×185.1×11.5 mm |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 15/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| PW090XUA | E Ink | 9.0" | 640×220 |
| PW090XU8 | E Ink | 9.0" | 640×220 |
| PW090XU7 | E Ink | 9.0" | 640×220 |
| PW090XU6 | E Ink | 9.0" | 640×220 |
| PW090XSA | E Ink | 9.0" | 640×220 |
| PW090XS8 | E Ink | 9.0" | 640×220 |
| PW084XU2 | E Ink | 8.4" | 480×234 |
| PW084XS6 | E Ink | 8.4" | 480×234 |
| PW084XS3 | E Ink | 8.4" | 480×234 |
| PW080XU8 | E Ink | 8.0" | 480×220 |
| PW080XU6 | E Ink | 8.0" | 480×220 |
| PW080XU5 | E Ink | 8.0" | 480×220 |
| PW070XUB | E Ink | 7.0" | 480×234 |
| PW070XU9 | E Ink | 7.0" |
480×234 |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 530/550g (Typ./Max.) |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Active Area : | 210.432×157.824 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

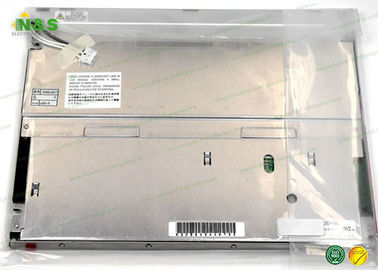

NL10276BC20-04C NEC LCD Panel Picture
