Product Details:
|
| Panel Size :: | 7.0 Inch | Resolution :: | 800(RGB)×480 , WVGA |
|---|---|---|---|
| Active Area :: | 152.4×91.44 Mm | Outline :: | 165×104×7.09 Mm |
| Brightness :: | 300 Cd/m² (Typ.) | Contrast Ratio :: | 400:1 (Typ.) |
| Display Colors :: | 262K (6-bit) , CIE1931 45% | Response Time :: | 3/15 (Typ.)(Tr/Td) |
| High Light: | tft lcd display,innolux lcd screen |
||

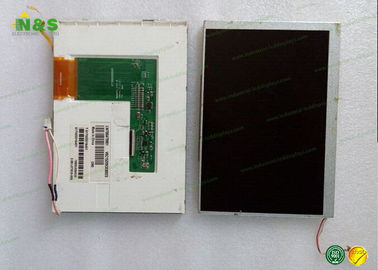

7.0 inch LW700AT9901 Innolux LCM TN, Normally White 152.4×91.44 mm
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
LW700AT9901 Specification
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 154.4×93.04 mm (H×V) |
| Outline Dimension : | 165×104 mm (H×V) |
| Outline Depth : | 6.59/7.09 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.330 |
| White Variation : | 1.25/1.43 (Typ./Max.) |
| Sunlight Readable : | N |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : | 1.6W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P101LCA-3P1 | Innolux | 10.1" | 1920×1200 |
| V650HP2-PS5 | Innolux | 65" | 1920×1080 |
| N156HGE-DB1 | Innolux | 15.6" | 1920×1080 |
| V500DJ4-QS1 | Innolux | 50" | 3840×2160 |
| V500DJ2-QS5 | Innolux | 50" | 3840×2160 |
| V400DJ1-QS5 | Innolux | 40" | 3840×2160 |
| P089DCZ-3A1 | Innolux | 8.9" | 800×1280 |
| N101JSA-P11 | Innolux | 10.1" | 1200×1920 |
| F050A13-601 | Innolux | 5.0" | 720×1280 |
| P097ZCA-1Z2 | Innolux | 9.7" | 1024×768 |
