Product Details:
|
Panel Size :: | 7.0 Inch | Resolution :: | 800(RGB)×480 , WVGA |
---|---|---|---|
Active Area :: | 152.4×91.44 Mm | Outline :: | 165×104.44×5.5 Mm |
Surface :: | Antiglare | Brightness :: | 500 Cd/m² (Typ.) |
Contrast Ratio :: | 700:1 (Typ.) | Display Colors :: | 16.7M (8-bit) , CIE1931 45% |
High Light: | lcd display panel,innolux lcd screen |

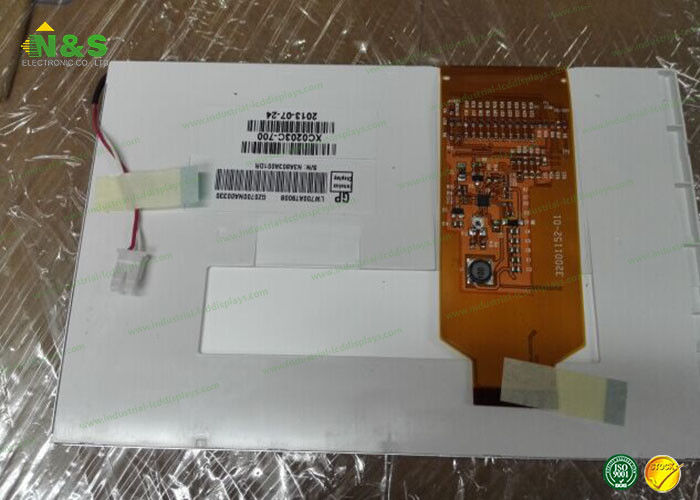

7.0 inch LW700AT9008 Innolux LCM 165×104.44×5.5 mm Outline
LW700AT9008 Information
Panel Size : | 7.0 inch |
Dot Resolution : | 800(RGB)×480 (WVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 133 PPI |
Aspect Ratio : | 15:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0635×0.1905 mm (H×V) |
Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
Weight : | 125g |
Surface : | Antiglare |
Active Area : | 152.4×91.44 mm (H×V) |
Bezel Area : | 155.30×94.30 mm (H×V) |
Outline Dimension : | 165×104.44 mm (H×V) |
Outline Depth : | 5.2±0.3 mm |
Holes & Brackets : | Without |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 500 cd/m² (Typ.) |
Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (8-bit) |
Color Gamut : | 45% NTSC (CIE1931) |
Response Time : | 5/11 (Typ.)(Tr/Td) |
Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.300; Wy:0.330 |
Sunlight Readable : | N |
Vertical Frequency : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Time Controller (T-CON) : | Embedded T-CON |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
PG050IA-02A | Innolux | 5.0" | 540×960 |
V400DK1-QE2 | Innolux | 40" | 3840×2160 |
V650DK1-QS3 | Innolux | 65" | 3840×2160 |
V400HK7-PE1 | Innolux | 40" | 1920×1080 |
V580DJ2-QS5 | Innolux | 58" | 3840×2160 |
F060A09-6T2 | Innolux | 6.0" | 720×1280 |
M238HCJ-P02 | Innolux | 23.8" | 1920×1080 |
ME270NA-01A | Innolux | 27.0" | 1920×1080 |
N156BGE-PB1 | Innolux | 15.6" | 1366×768 |
PP050IC-01F | Innolux | 5.0" | 720×1280 |
P060DDZ-ZZ1 | Innolux | 6.0" | 800×1280 |
