Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 304.128×228.096 Mm |
|---|---|---|---|
| Display Colors: | 262K (6-bit) , CIE1931 40% | Viewing Angle: | 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Contrast Ratio: | 200:1 (Typ.) | Brightness: | 200 Cd/m² (Typ.) |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NEC LCD Panel NL10276AC30-04R 15.0 inch with 304.128×228.096 mm Active Area
NL10276AC30-04R Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276AC30-04R |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 350×265×20.5 mm |
| Surface : | Antireflection |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 200:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 15/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Embedded (Inverter) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 5.0V (Typ.) |
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.35/1.50Kgs (Typ./Max.) |
| Surface : | Antireflection |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 308.8×232.7 mm (H×V) |
| Outline Dimension : | 350×265 mm (H×V) |
| Outline Depth : | 20.0/20.5 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5, 1-Φ3, 1-Φ3.1, 1-Φ4.5x3.1) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
Our Advantages

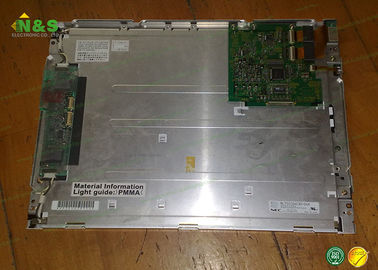

NL10276AC30-04R NEC LCD Panel Picture
