Product Details:
|
| Surface: | Hard Coating (3H), Antireflection | Outline: | 350×265×24 Mm |
|---|---|---|---|
| Display Colors: | Full Color , CIE1931 35% | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | nec lcd touch screen,nec lcd screen |
||
Full color NL10276AC30-01 NEC LCD Panel 15.0 inch with 304.128×228.096 mm Active Area
NL10276AC30-01 NEC LCD Panel Specification
| Panel Brand : | NEC |
| Panel Model : | NL10276AC30-01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | SFT, Normally Black, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 350×265×24 mm |
| Surface : | Hard coating (3H), Antireflection |
| Brightness : | 180 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | Full color , CIE1931 35% |
| Response Time : | 44/47 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB , 41 pins |
| Input Voltage : | 12.0V (Typ.) |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.68/1.72Kgs (Typ./Max.) |
| Surface : | Hard coating (3H), Antireflection |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 308.8×232.7 mm (H×V) |
| Outline Dimension : | 350×265 mm (H×V) |
| Outline Depth : | 23.0/24.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5,1-Φ3,1-Φ3.1,1-Φ4.5x3.1) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| BRAND | P/N | size | quantity |
| NEC | NL6448BC33-64D | 10.4" | 60 |
| NEC | NL6448AC20-06 | 6.5" | 300 |
| NEC | NL3224BC35-20 | 5.5" | 200 |

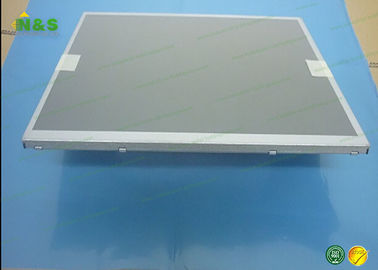

NL10276AC30-01 NEC LCD Panel Picture
