Product Details:
|
| Outline Dimension: | 330×255 Mm (H×V) | Bezel Area: | 290.4×219.0 Mm (H×V) |
|---|---|---|---|
| Active Area: | 285.696×214.272 Mm (H×V) | Surface: | Antiglare, Hard Coating (3H) |
| Weight: | 1.18/1.30Kgs (Typ./Max.) | Pixel Pitch: | 0.279×0.279 Mm (H×V) |
| Form Factor: | Flat Rectangle Display | Aspect Ratio: | 4:3 (H:V) |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NL10276AC28-05R 14.1 inch Hard coating NEC LCD Panel with 285.696×214.272 mm Active Area
NL10276AC28-05R Specification
| Panel Brand : | NEC |
| Panel Model : | NL10276AC28-05R |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 14.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 285.696×214.272 mm |
| Outline : | 330×255×20.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 11/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/20/35 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL Embedded (Inverter) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 14.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.093×0.279 mm (H×V) |
| Pixel Pitch : | 0.279×0.279 mm (H×V) |
| Weight : | 1.18/1.30Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 285.696×214.272 mm (H×V) |
| Bezel Area : | 290.4×219.0 mm (H×V) |
| Outline Dimension : | 330×255 mm (H×V) |
| Outline Depth : | 20.0/20.5 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.

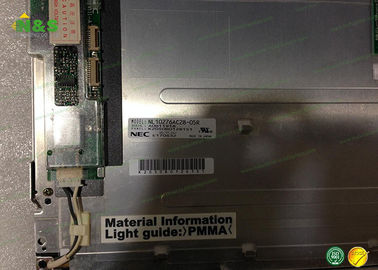

NL10276AC28-05R NEC LCD Panel Picture
