Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Surface: | Hard Coating (3H) |
|---|---|---|---|
| Contrast Ratio: | 150:1 (Typ.) | Display Colors: | 262K (6-bit) , CIE1931 40% |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Normally White NL10276AC28-05D NEC LCD Panel 14.1 inch for Desktop Monitor panel
NL10276AC28-05D NEC LCD Panel Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276AC28-05D |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 14.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 285.696×214.272 mm |
| Outline : | 330×255×20.5 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 11/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/20/35 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL Embedded (Inverter) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 14.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.093×0.279 mm (H×V) |
| Pixel Pitch : | 0.279×0.279 mm (H×V) |
| Weight : | 1.22/1.30Kgs (Typ./Max.) |
| Surface : | Hard coating (3H) |
| Active Area : | 285.696×214.272 mm (H×V) |
| Bezel Area : | 290.4×219.0 mm (H×V) |
| Outline Dimension : | 330×255 mm (H×V) |
| Outline Depth : | 20.0/20.5 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| BRAND | P/N | size | quantity |
| NEC | NL6448BC33-64D | 10.4" | 60 |
| NEC | NL6448AC20-06 | 6.5" | 300 |
| NEC | NL3224BC35-20 | 5.5" | 200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

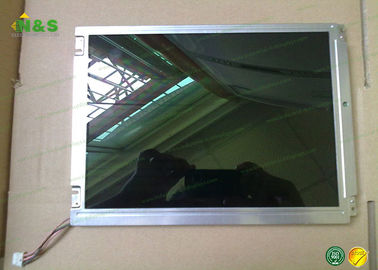

NL10276AC28-05D NEC LCD Panel Picture
