Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Contrast Ratio: | 150:1 (Typ.) |
|---|---|---|---|
| Display Colors: | Full Color , CIE1931 35% | Signal Interface: | Analog RGB , 49 Pins |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Full color NEC LCD Panel NL10276AC28-01A 14.1 inch Flat Rectangle Display
NL10276AC28-01A Information
| Panel Brand : | NEC |
| Panel Model : | NL10276AC28-01A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 14.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 285.696×214.272 mm |
| Outline : | 330×255×20 mm |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | Full color , CIE1931 35% |
| Response Time : | 15 (Typ.)(Tr) |
| Viewing Angle : | 50/50/15/30 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB , 49 pins |
| Input Voltage : | 12.0V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 14.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.093×0.279 mm (H×V) |
| Pixel Pitch : | 0.279×0.279 mm (H×V) |
| Weight : | 1.32/1.38Kgs (Typ./Max.) |
| Active Area : | 285.696×214.272 mm (H×V) |
| Bezel Area : | 290.4×219.0 mm (H×V) |
| Outline Dimension : | 330×255 mm (H×V) |
| Outline Depth : | 19.0/20.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.

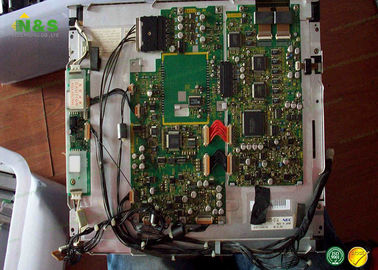

NL10276AC28-01A NEC LCD Panel Picture
