Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Outline: | 290×225×17 Mm |
|---|---|---|---|
| Active Area: | 245.76×184.32 Mm | Contrast Ratio: | 150:1 (Typ.) |
| Brightness: | 200 Cd/m² (Typ.) | Signal Interface: | Analog RGB , 31 Pins |
| Display Colors: | Full Color , CIE1931 40% | Display Mode: | TN, Normally White, Transmissive |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Normally White NEC LCD Panel NL10276AC24-02 12.1 inch with 290×225×17 mm Outline
NEC LCD Panel NL10276AC24-02 Specification
| Panel Brand : | NEC |
| Panel Model : | NL10276AC24-02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 245.76×184.32 mm |
| Outline : | 290×225×17 mm |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | Full color , CIE1931 40% |
| Response Time : | 40 (Max.)(Tr) |
| Viewing Angle : | 45/45/20/25 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL Embedded (Inverter) |
| Signal Interface : | Analog RGB , 31 pins |
| Input Voltage : | 3.3/12V (Typ.)(VCC/VDD) |
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 0.97/1.00Kgs (Typ./Max.) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 258.3×188.8 mm (H×V) |
| Outline Dimension : | 290×225 mm (H×V) |
| Outline Depth : | 17.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| BRAND | P/N | size | quantity |
| NEC | NL6448BC33-64D | 10.4" | 60 |
| NEC | NL6448AC20-06 | 6.5" | 300 |
| NEC | NL3224BC35-20 | 5.5" | 200 |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

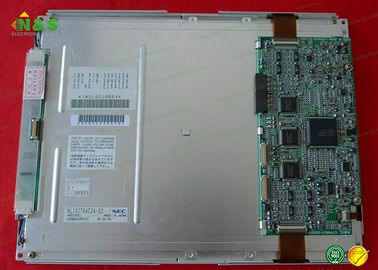

NL10276AC24-02 NEC LCD Panel Picture
