Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Display Colors: | 4096 (4-bit) , CIE1931 40% |
|---|---|---|---|
| Response Time: | 40 (Min.)(Tr+Td) | Viewing Angle: | 45/45/25/25 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz | Resolution: | 1024(RGB)×768 , XGA |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Normally White NEC LCD Panel NL10276AC20-03 10.4 inch with 211.968×158.976 mm Active Area
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
NL10276AC20-03 Information
| Panel Brand : | NEC |
| Panel Model : | NL10276AC20-03 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.968×158.976 mm |
| Outline : | 282×190×13 mm |
| Brightness : | 85 cd/m² (Typ.) |
| Contrast Ratio : | 100:1 (Typ.) |
| Display Colors : | 4096 (4-bit) , CIE1931 40% |
| Response Time : | 40 (Min.)(Tr+Td) |
| Viewing Angle : | 45/45/25/25 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Embedded (Inverter) |
| Signal Interface : | TTL (1 ch, 4-bit) , 65 pins |
| Input Voltage : | 5.0/12.0V (Typ.)(VCC/VDD) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| BRAND | P/N | size | quantity |
| NEC | NL6448BC33-64D | 10.4" | 60 |
| NEC | NL6448AC20-06 | 6.5" | 300 |
| NEC | NL3224BC35-20 | 5.5" |
200 |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 122 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.069×0.207 mm (H×V) |
| Pixel Pitch : | 0.207×0.207 mm (H×V) |
| Weight : | 680/700g (Typ./Max.) |
| Active Area : | 211.968×158.976 mm (H×V) |
| Bezel Area : | 216.1×162.8 mm (H×V) |
| Outline Dimension : | 282×190 mm (H×V) |
| Outline Depth : | 13.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

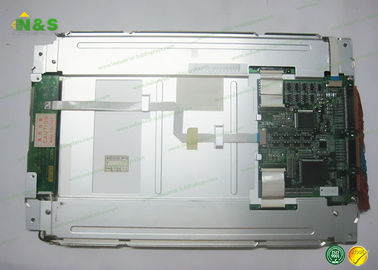

NL10276AC20-03 NEC LCD Panel Picture
