Product Details:
|
| Resolution: | 1440(RGB)×900 , WXGA+ | Active Area: | 408.24×255.15 Mm |
|---|---|---|---|
| Brightness: | 250 Cd/m² (Typ.) | Response Time: | 1.5/3.5 (Typ.)(Tr/Td) |
| High Light: | tft lcd display,lcd display panel |
||
Normally White MT190AW02 V.W Hard coating Innolux LCD Panel 19.0 inch
MT190AW02 V.W Product Information
| Panel Brand : | INNOLUX |
| Panel Model : | MT190AW02 V.W |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1440(RGB)×900 , WXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 408.24×255.15 mm |
| Outline : | 428×278 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 68% |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 5 strings WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 89 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch : | 0.2835×0.2835 mm (H×V) |
| Weight : | 2.20Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 408.24×255.15 mm (H×V) |
| Bezel Area : | 412.24×259.15 mm (H×V) |
| Outline Dimension : | 428×278 mm (H×V) |
| Outline Depth : | 16.0 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| BRAND | P/N | size | quantity |
| Innolux | G104S1-L01 | 10.4" | 500 |
| Innolux | G150XGE-L05 | 15.0" | 500 |
| Innolux | G057VGE-T01 | 5.7" | 852 |
| Innolux | G070Y2-T02 | 7.0" | 2320 |
| Innolux | G070Y3-T01 | 7.0" | 1580 |
| Innolux | G104S1-L01 | 10.4" | 850 |
| Innolux | G141C1-L01 | 14.1" | 450 |
| Innolux | R190E6-L01 | 19.0" | 150 |
| Innolux | R196U2-L03 | 19.6" | 450 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

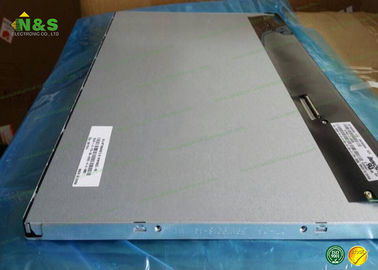

MT190AW02 V.W Innolux LCD Panel Picture
