Product Details:
|
| Surface: | Antiglare (Haze 25%), Hard Coating (3H) | Outline: | 544.8×320.5 Mm |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 , FHD | Display Colors: | 16.7M (8-bit) , CIE1931 72% |
| High Light: | tft lcd display,lcd display panel |
||
23.6 inch Innolux LCD Panel M236HGE-L23 Hard coating for Desktop Monitor
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Innolux LCD Panel M236HGE-L23 Information
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M236HGE-L23 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 23.6 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 521.28×293.22 mm |
| Outline : | 544.8×320.5 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 23.6 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 93 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0905×0.2715 mm (H×V) |
| Pixel Pitch : | 0.2715×0.2715 mm (H×V) |
| Weight : | 2.31/2.41Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 521.28×293.22 mm (H×V) |
| Bezel Area : | 525.22×297.22 mm (H×V) |
| Outline Dimension : | 544.8×320.5 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on up and down side |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| N156BGE-PB1 | Innolux | 15.6" | 1366×768 |
| PP050IC-01F | Innolux | 5.0" | 720×1280 |
| P060DDZ-ZZ1 | Innolux | 6.0" | 800×1280 |
| ME236NA-01A | Innolux | 23.6" | 1920×1080 |
| F055A07-601 | Innolux | 5.5" | 720×1280 |
| F050A07-6T2 | Innolux | 5.0" | 720×1280 |
| V650HP1-PS6 Rev.C6 | Innolux | 65" | 1920×1080 |
| P101LCA-3P1 | Innolux | 10.1" | 1920×1200 |
| V650HP2-PS5 | Innolux | 65" | 1920×1080 |
| N156HGE-DB1 | Innolux | 15.6" | 1920×1080 |
| V500DJ4-QS1 | Innolux | 50" | 3840×2160 |
| V500DJ2-QS5 | Innolux | 50" | 3840×2160 |
| V400DJ1-QS5 | Innolux | 40" | 3840×2160 |
| P089DCZ-3A1 | Innolux | 8.9" | 800×1280 |
| N101JSA-P11 | Innolux | 10.1" | 1200×1920 |
| F050A13-601 | Innolux | 5.0" | 720×1280 |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

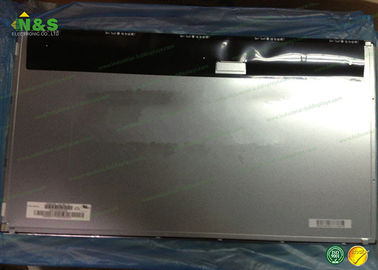

M236HGE-L23 Innolux LCD Panel Picture
