Product Details:
|
| Panel Size: | 8.4 Inch | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Display Modetion: | TN, Normally White, Transmissive | Outline: | 200×152×11 Mm |
| Active Area: | 170.4×127.8 Mm | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | nec lcd touch screen,nec lcd screen |
||
NL8060BC21-06 NEC LCD Panel 8.4 inch Normally White with 170.4×127.8 mm
NL8060BC21-06 Detail
| Panel Size : | 8.4 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 330g (Typ.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 174.0×131.4 mm (H×V) |
| Outline Dimension : | 200×152 mm (H×V) |
| Outline Depth : | 9.0/11.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Ф2.8) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : |
Without |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
|
Display Mode : |
TN, Normally White, Transmissive |
|---|---|
| Brightness : | 650 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
| ED097OD2 | E Ink | 9.7" | 1200×825 |

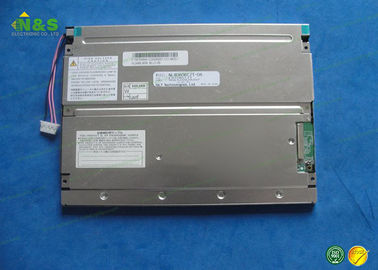

NL8060BC21-06 Picture
