Product Details:
|
| Panel Size: | 9.0 Inch | Resolution: | 800(RGB)×480 , WVGA |
|---|---|---|---|
| Display Modetion: | TN, Normally White, Transmissive | Outline: | 220.5×136.5×11 Mm |
| Active Area: | 196.8×118.08 Mm | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | nec lcd touch screen,nec tft lcd |
||
9.0 inch NL8048BC24-04 NEC LCD Panel Normally Black with 196.8×118.08 mm
NL8048BC24-04 Product Information
| Panel Size : | 9.0 inch |
|---|---|
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 103 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.082×0.246 mm (H×V) |
| Pixel Pitch : | 0.246×0.246 mm (H×V) |
| Weight : | 365/400g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 196.8×118.08 mm (H×V) |
| Bezel Area : | 200.2×120.4 mm (H×V) |
| Outline Dimension : | 220.5×136.5 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
| Display Mode : | UA-SFT, Normally Black, Transmissive |
|---|---|
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

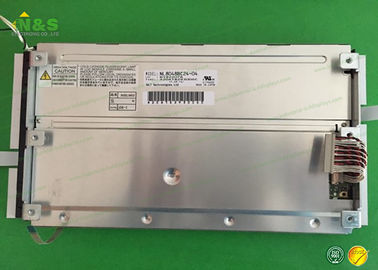

NL8048BC24-04 Picture
