Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display Modetion: | TN, Normally White, Transmissive | Outline: | 243×185.1×11.5 Mm |
| Active Area: | 211.2×158.4 Mm | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | nec lcd touch screen,nec lcd screen |
||
10.4 inch NEC NL6448BC33-46D NEC LCD Panel LCM 640×480 350 300:1 262K CCFL TTL
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
NL6448BC33-46D Specification
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 530/550g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 43% NTSC (CIE1931) |
| Response Time : | 6/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.305; Wy:0.330 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points)  |
| Sunlight Readable : | N |

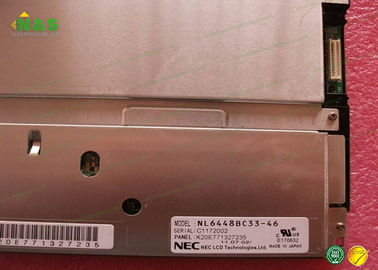

NL6448BC33-46D Picture
