Product Details:
|
| Panel Size: | 8.4 Inch | Resolution: | 640(RGB)×480 (VGA) |
|---|---|---|---|
| Display Modetion: | TN, Normally White, Transmissive | Active Area: | 170.88×128.16 Mm |
| Outline :: | 200×152 Mm | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | nec lcd touch screen,nec tft lcd |
||
8.4 inch NL6448BC26-09D NEC LCD Panel Normally White LCM 640×480 450 600:1 262K CCFL TTL
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
NL6448BC26-09D Specification
| Panel Size : | 8.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089×0.267 mm (H×V) |
| Pixel Pitch : | 0.267×0.267 mm (H×V) |
| Weight : | 330/350g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 170.88×128.16 mm (H×V) |
| Bezel Area : | 174.0×131.4 mm (H×V) |
| Outline Dimension : | 200×152 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Ф2.8) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Withou |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
Packing & Delivery for our LCD Screen Panel Replacements:

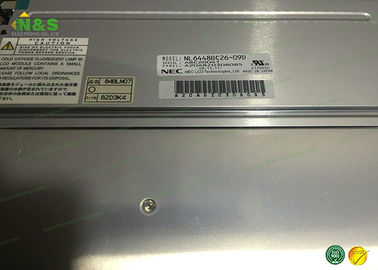

NL6448BC26-09D Picture
