Product Details:
|
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) |
|---|---|---|---|
| Display Colors: | 16.7M (8-bit) , CIE1931 72% | Response Time: | 1.3/3.7 (Typ.)(Tr/Td) |
| Frequency: | 60Hz | Input Voltage: | 5.0V (Typ.) |
| High Light: | tft lcd display,innolux lcd screen |
||
Normally White 22.0 inch M220Z3-LA3 Innolux LCD Panel with 473.76×296.1 mm Active Area
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
M220Z3-LA3 Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M220Z3-LA3 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 22.0 inch |
| Resolution : | 1680(RGB)×1050 , WSXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 473.76×296.1 mm |
| Outline : | 493.7×320.1×11.5 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 14S8P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 22.0 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 2.20/2.29Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 473.76×296.1 mm (H×V) |
| Bezel Area : | 477.7×300.1 mm (H×V) |
| Outline Dimension : | 493.7×320.1 mm (H×V) |
| Outline Depth : | 11.5 (Max.) mm |
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| N156BGE-PA1 | Innolux | 15.6" | 1366×768 |
| V500HK3-PS1 | Innolux | 50" | 1920×1080 |
| M280DGJ-Q02 | Innolux | 28.0" | 3840×2160 |
| V290BJ1-PE2 | Innolux | 29.0" | 1366×768 |
| V420DK1-QS1 | Innolux | 42" | 3840×2160 |
| PG045IC-01D | Innolux | 4.5" | 720×1280 |
| M236HJJ-P02 | Innolux | 23.6" | 1920×1080 |
| F060A09-603 | Innolux | 6.0" | 720×1280 |
| EE030IA-06A | Innolux | 3.0" | 640×480 |
| C03028-02Z | Innolux | 3.0" | 480×640 |
| N070ICE-HB1 | Innolux | 7.0" | 800×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

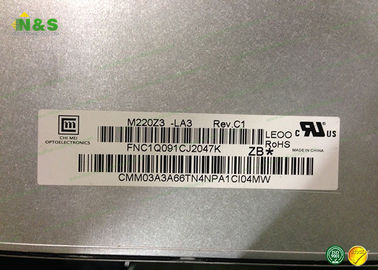

M220Z3-LA3 Innolux LCD Panel Picture
