Product Details:
|
| Panel Model: | M220Z1-L03 | Panel Type: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Display Colors: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% | Brightness: | 300 Cd/m² (Typ.) |
| Response Time: | 1.3/3.7 (Typ.)(Tr/Td) | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | tft lcd display,innolux lcd screen |
||
22.0 inch M220Z1-L03 Hard coating Innolux LCD Panel 473.76×296.1 mm for Desktop Monitor
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
M220Z1-L03 Innolux LCD Panel Information
| Panel Brand : | CMO |
| Panel Model : | M220Z1-L03 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 22.0 inch |
| Resolution : | 1680(RGB)×1050 , WSXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 473.76×296.1 mm |
| Outline : | 493.7×320.1 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 22.0 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 2.82/2.87Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 473.76×296.1 mm (H×V) |
| Bezel Area : | 477.7×300.1 mm (H×V) |
| Outline Dimension : | 493.7×320.1 mm (H×V) |
| Outline Depth : | 16.5/17.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (8-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
| PG055IC-07F | Innolux | 5.5" | 1080×1920 |
| PB050IC-01D | Innolux | 5.0" | 1080×1920 |
| PG050IA-02A | Innolux | 5.0" | 540×960 |
| V400DK1-QE2 | Innolux | 40" | 3840×2160 |
| V650DK1-QS3 | Innolux | 65" | 3840×2160 |

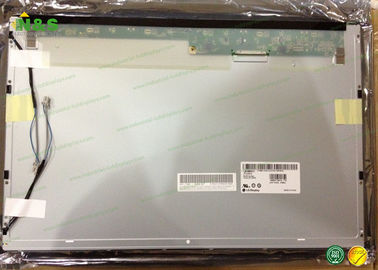

M220Z1-L03 Innolux LCD Panel Picture
