Product Details:
|
| Resolution: | 1680(RGB)×1050 , WSXGA+ | Active Area: | 473.76×296.1 Mm |
|---|---|---|---|
| Display Colors: | 16.7M (8-bit) , CIE1931 70% | Frequency: | 60Hz |
| High Light: | lcd display panel,innolux lcd screen |
||
22.0 inch CMO M220Z1-L01 LCD Panel 473.76×296.1 mm for Desktop Monitor
M220Z1-L01 LCD Panel Detail
| Panel Brand : | CMO |
| Panel Model : | M220Z1-L01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 22.0 inch |
| Resolution : | 1680(RGB)×1050 , WSXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 473.76×296.1 mm |
| Outline : | 493.7×320.1 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 70% |
| Response Time : | 2/3 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Panel Size : | 22.0 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 2.80Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 473.76×296.1 mm (H×V) |
| Bezel Area : | 477.7×300.1 mm (H×V) |
| Outline Dimension : | 493.7×320.1 mm (H×V) |
| Outline Depth : | 16.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (8 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
| PW100XU2 | E Ink | 10.0" | 640×468 |
| PW090XUD | E Ink | 9.0" | 640×220 |

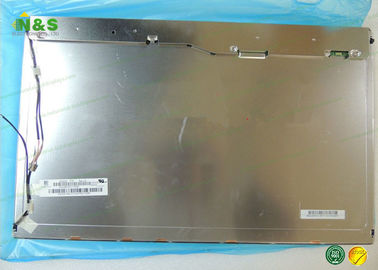

M220Z1-L01 Innolux LCD Panel Picture
