Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.6 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 112.896×84.672 Mm | Outline: | 0 |
| High Light: | lcd display panel,innolux lcd screen |
||

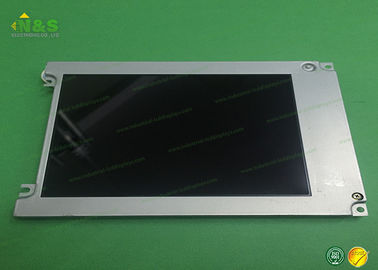

5.6 inch AT056TN52 V.4 Innolux LCD Panel Innolux for Automotive Display panel
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
| PG055IC-07F | Innolux | 5.5" | 1080×1920 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
AT056TN52 V.4 Specification
| Panel Size : | 5.6 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 143 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0588×0.1764 mm (H×V) |
| Pixel Pitch : | 0.1764×0.1764 mm (H×V) |
| Active Area : | 112.896×84.672 mm (H×V) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, Transmissive |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
