Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 101.568×76.176 Mm | Outline: | 117.65×88.43×10.3 Mm |
| High Light: | tft lcd display,innolux lcd screen |
||

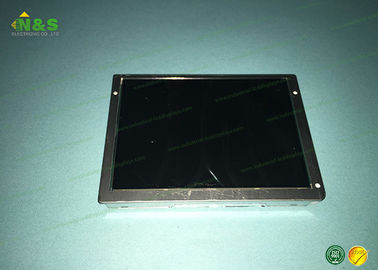

AT050TN23 V.5 Innolux LCD Panel Innolux 5.0 inch Normally White LCM 640×480 350 500:1 16.7M WLED TTL
AT050TN23 V.5 Specification
| Panel Size : | 5.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 160 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0529×0.1587 mm (H×V) |
| Pixel Pitch : | 0.1587×0.1587 mm (H×V) |
| Weight : | 85g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 101.568×76.176 mm (H×V) |
| Bezel Area : | 105.6×80.2 mm (H×V) |
| Outline Dimension : | 117.65×88.43 mm (H×V) |
| Outline Depth : | 7.9/10.3 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/65/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| PG050IA-02A | Innolux | 5.0" | 540×960 |
| V400DK1-QE2 | Innolux | 40" | 3840×2160 |
| V650DK1-QS3 | Innolux | 65" | 3840×2160 |
| V400HK7-PE1 | Innolux | 40" | 1920×1080 |
| V580DJ2-QS5 | Innolux | 58" | 3840×2160 |
| F060A09-6T2 | Innolux | 6.0" | 720×1280 |
| M238HCJ-P02 | Innolux | 23.8" | 1920×1080 |
| ME270NA-01A | Innolux | 27.0" | 1920×1080 |
