Product Details:
|
| Panel Brand: | CHIMEI INNOLUX | Response Time: | 1.5/3.5 (Typ.)(Tr/Td) |
|---|---|---|---|
| Contrast Ratio: | 1000:1 (Typ.) | Display Mode: | TN, Normally White, Transmissiv |
| Active Area: | 476.64×268.11 Mm | Brightness: | 250 Cd/m² (Typ.) |
| Display Colors: | 16.7M (8-bit) , CIE1931 72% | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| High Light: | tft lcd display,innolux lcd screen |
||
21.5 Inch M215HGE-L10 Innolux LCD Panel Landscape type with 476.64×268.11 mm
M215HGE-L10 Innolux LCD Panel Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M215HGE-L10 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.5 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 476.64×268.11 mm |
| Outline : | 495.6×292.2×12 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 21.5 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 102 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08275×0.24825 mm (H×V) |
| Pixel Pitch : | 0.24825×0.24825 mm (H×V) |
| Weight : | 2.04/2.12Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 476.64×268.11 mm (H×V) |
| Bezel Area : | 479.8×271.3 mm (H×V) |
| Outline Dimension : | 495.6×292.2 mm (H×V) |
| Outline Depth : | 11.5/12.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| BRAND | P/N | size | quantity |
| Innolux | G057VGE-T01 | 5.7" | 852 |
| Innolux | G070Y2-T02 | 7.0" | 2320 |
| Innolux | G070Y3-T01 | 7.0" | 1580 |
| Innolux | G104S1-L01 | 10.4" | 850 |
| Innolux | G141C1-L01 | 14.1" | 450 |
| Innolux | R190E6-L01 | 19.0" | 150 |
| Innolux | R196U2-L03 | 19.6" | 450 |
| Innolux | G260JJE-L07 | 25.5" | 100 |
| Innolux | AT056TN52 V.5 | 5.6" | 1200 |
| INNOLUX | LW700AT6005 | 7.0" | 2000 |
| innolux | HJ080IA-01E | 8" | 450 |

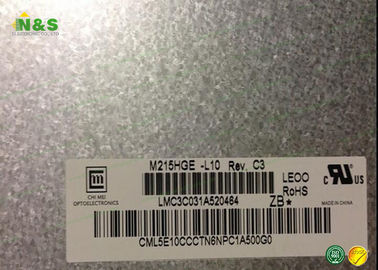

M215HGE-L10 Innolux LCD Panel Picture
