Product Details:
|
| Resolution: | 1920(RGB)×1080 , FHD | Active Area: | 476.64×268.11 Mm |
|---|---|---|---|
| Outline: | 495.6×292.2×12.1 Mm | Frequency: | 60Hz |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | tft lcd display,innolux lcd screen |
||
21.5 inch M215H3-LA1 CMO LCD Panel with 476.64×268.11 mm Active Area
M215H3-LA1 Information
| Panel Brand : | CMO |
| Panel Model : | M215H3-LA1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.5 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 476.64×268.11 mm |
| Outline : | 495.6×292.2×12.1 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 13S6P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 21.5 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 102 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08275×0.24825 mm (H×V) |
| Pixel Pitch : | 0.24825×0.24825 mm (H×V) |
| Weight : | 2.01/2.06Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 476.64×268.11 mm (H×V) |
| Bezel Area : | 479.8×271.3 mm (H×V) |
| Outline Dimension : | 495.6×292.2 mm (H×V) |
| Outline Depth : | 8.75/12.1 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.

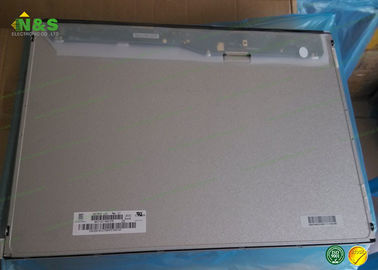

M215H3-LA1 Innolux LCD Panel Picture
