Product Details:
|
| Panel Size: | 10.1 Inch | Resolution: | 1280(RGB)×800 , WXGA |
|---|---|---|---|
| Display Mode: | IPS, Normally Black, Transmissive | Signal Interface: | LVDS (1 Ch, 8-bit) , 40 Pins |
| High Light: | lcd display panel,innolux lcd screen |
||
| Panel Size : | 10.1 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 149 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) | |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) | |
| Weight : | 169.59g | |
| Surface : |
| |
| Active Area : | 216.96×135.6 mm (H×V) | |
| Outline Dimension : | 229.46×149.1 mm (H×V) | |
| Outline Depth : | 2.4/4.31 (Typ./Max.) mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
| |
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Response Time : | 10/15 (Typ.)(Tr/Td) | |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.310; Wy:0.330 | |
| White Variation : |
| |
| Sunlight Readable : | N |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AE060RN01 | Innolux | 6.0" | 800×600 |
| F050A12-601 | Innolux | 5.0" | 480×854 |
| 85C02502-Y21 | Innolux | 2.5" | 320×240 |
| V260B2-P03 Rev.C2 | Innolux | 26.0" | 1366×768 |
| G070YG1-P01 | Innolux | 7.0" | 800×480 |
| F03215-01Z | Innolux | 3.2" | 360×480 |
| F0352A-01U | Innolux | 3.5" | 320×480 |
| F07020-01D | Innolux | 7.0" | 480×234 |

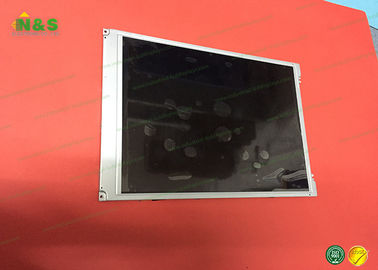

EJ101IA-01B Picture
