Product Details:
|
Panel Size: | 7.0 Inch | Resolution: | 800(RGB)×1280 , WXGA |
---|---|---|---|
Display Mode: | IPS, Normally Black, Transmissive | Signal Interface: | MIPI (4 Data Lanes) |
High Light: | lcd display panel,innolux lcd screen |
Panel Size : | 7.0 inch | |
Dot Resolution : | 800(RGB)×1280 (WXGA) | |
Pixel Configuration : | RGB Vertical Stripe | |
Pixel Density : | 215 PPI | |
Aspect Ratio : | 10:16 (H:V) | |
Form Factor : | Flat Rectangle Display | |
Dot Pitch : | 0.03925×0.11775 mm (H×V) | |
Pixel Pitch : | 0.11775×0.11775 mm (H×V) | |
Weight : |
|
|
Surface : | Hard coating | |
Active Area : | 94.2×150.72 mm (H×V) | |
Outline Dimension : | 104.32×161.67 mm (H×V) | |
Outline Depth : | 2.3/3.8 (Typ./Max.) mm | |
Holes & Brackets : | Without | |
Landscape or Portrait : | Portrait type | |
Touch Panel : | Without |
|
|
||
Brightness : | 450 cd/m² (Typ.) | ||
Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) | ||
Display Color : | 16.7M (8-bit) | ||
Response Time : | 30 (Typ.)(Tr+Td) | ||
Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | ||
Viewing Direction : | Symmetry | ||
White color Chromaticity : |
|
||
White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
Sunlight Readable : | N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
V156B2-P02 | Innolux | 15.6" | 1366×768 |
N154I2-P05 | Innolux | 15.4" | 1280×800 |
C03024-01Z | Innolux | 3.0" | 960×480(dot) |
G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
F04307-06Z | Innolux | 4.3" | 480×800 |
CG043JN16 | Innolux | 4.3" | 480×800 |
F04008-01U | Innolux | 4.0" | 480×800 |
N156BGE-P21 | Innolux | 15.6" | 1366×768 |
F04801-01Z | Innolux | 4.8" | 540×960 |
N133HSG-D31 | Innolux | 13.3" | 1920×1080 |
N133HSE-D31 | Innolux | 13.3" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packing & Delivery for our LCD Screen Panel Replacements:

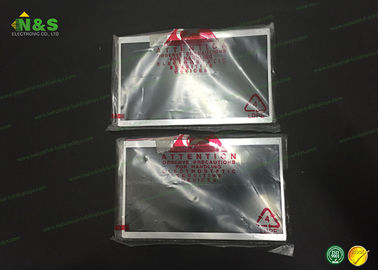

EJ070IA-04A Picture
