Product Details:
|
| Outline: | 430.32×254.6×11 Mm | Panel Type: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Active Area: | 409.8×230.4 Mm | Response Time: | 2/6 (Typ.)(Tr/Td) |
| High Light: | tft lcd display,lcd display panel |
||
Landscape M185BGE-L2U Anti Glare Innolux LCD Panel Screen 409.8×230.4 mm Active Area
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Innolux LCD Panel M185BGE-L2U Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M185BGE-L2U |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 18.5 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 409.8×230.4 mm |
| Outline : | 430.32×254.6×11 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 9S4P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
| Panel Size : | 18.5 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.100×0.300 mm (H×V) |
| Pixel Pitch : | 0.300×0.300 mm (H×V) |
| Weight : | 1.45/1.6Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 409.8×230.4 mm (H×V) |
| Bezel Area : | 413.4×234.0 mm (H×V) |
| Outline Dimension : | 430.32×254.6 mm (H×V) |
| Outline Depth : | 10.5/11.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4 pcs) on up down bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| BRAND | P/N | size | quantity |
| Innolux | G104S1-L01 | 10.4" | 500 |
| Innolux | G150XGE-L05 | 15.0" | 500 |
| Innolux | G057VGE-T01 | 5.7" | 852 |
| Innolux | G070Y2-T02 | 7.0" | 2320 |
| Innolux | G070Y3-T01 | 7.0" | 1580 |
| Innolux | G104S1-L01 | 10.4" | 850 |
| Innolux | G141C1-L01 | 14.1" | 450 |
| Innolux | R190E6-L01 | 19.0" | 150 |
| Innolux | R196U2-L03 | 19.6" | 450 |

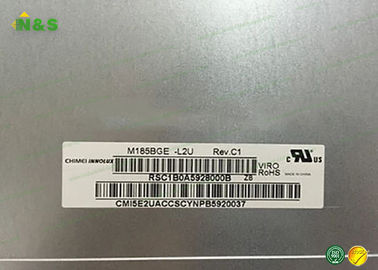

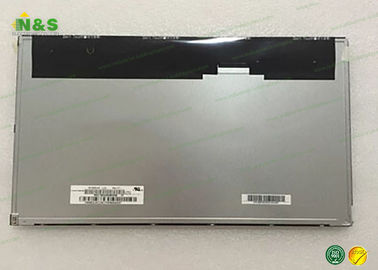

M185BGE-L2U Innolux LCD Panel Picture
